Fully relativistic pseudopotentials generated by
the MBK (PRB 47, 6728 (1993)) scheme within LDA (CA13) and GGA (PBE13) which contain
a partial core correction and fully relativistic effects including spin-orbit coupling.
The number below the symbol means a cutoff radius (a.u.) of the confinement
potential. These file includes fifteen radial parts for each angular
momentum quantum number l (=0,1,2,3). The basis functions were generated by variationally
optimizing the corresponding primitive basis functions in the single atom, the dimer molecule,
and the FCC bulk. The input files used for the orbital optimization can be found at
Sc_opt.dat ,
Sc2_opt.dat ,
and
Scfcc_opt.dat .
Since Sc_CA13.vps and Sc_PBE13.vps include the 3s, 3p, 3d and 4s (11 electrons)
as the valence states, the minimal basis set is Sc*.*-s2p1d1.
Our recommendation for the choice of cutoff radius of basis functions is that
Sc7.0.pao is enough for bulks, but Sc9.0.pao or Sc11.0.pao is preferable
for molecular systems.
Benchmark calculations by the PBE13 pseudopotential with the various basis functions

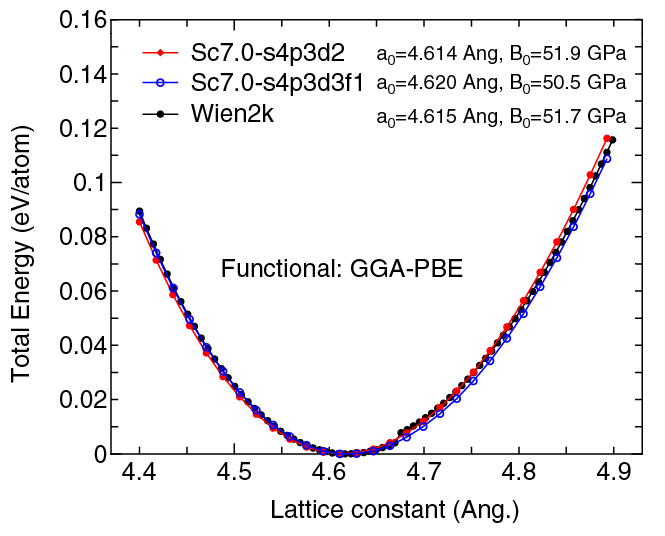

(1) Calculation of the total energy as a function of lattice constant in the fcc structure,
where the total energy is plotted relative to the minimum energy for each case. a0
and B0 are the equilibrium lattice constant and bulk modulus obtained by fitting to
the Murnaghan equation of state. The difference between Sc7.0-s4p3d2 and Sc7.0-s4p3d3f1
in the total energy at the minimum point is 0.0086 eV/atom.
An input file used for the OpenMX calculations can be found at
Scfcc-EvsV.dat .
For comparison the result by the Wien2k code is also shown, where
the calculation was performed by default setting in the Ver. 9.1 of Wien2k except for
the use of RMT x KMAX of 12.

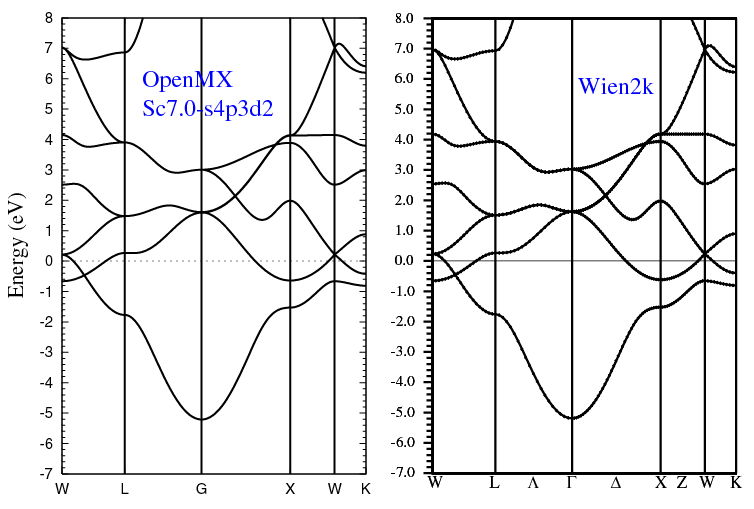

(2) Calculations of the band dispersion in the fcc structure,
where the non-spin polarized collinear calculation with the lattice constant of 4.60 Ang.
was performed using Sc_PBE13.vps and Sc7.0-s4p3d2,
and the origin of the energy is taken to be the Fermi level.
The input file used for the OpenMX calculations can be found at
Scfcc-Band.dat .
For comparison the result by the Wien2k code is also shown, where
the calculation was performed by default setting in the Ver. 9.1 of Wien2k
except for the use of RMT x KMAX of 12.
(3) Calculations of the CaO molecule with S=5,
where Sc_PBE13.vps, Sc9.0-s4p3d2, and Sc9.0-s4p3d3f1 were used.
The input files used for the OpenMX calculations can be found at
Sc2.dat ,
Sc_CP.dat ,
and
Sc.dat .
Equilibrium bond length (Ang.)
Atomization energy (eV)
Atomization energy (couterpoise corrected) (eV)
Sc9.0-s4p3d2
2.647
1.890
1.854
Sc9.0-s4p3d3f1
2.644
1.912
1.871
Other calc.
2.58 a
2.34 a
Expt.
1.665 b
a LDA result: M. Valiev et al., J. Chem. Phys. 119, 5955 (2003). b G. L. Gutsev and C. W. Bauschlicher, Jr., J. Phys. Chem. A 107, 4755 (2003).

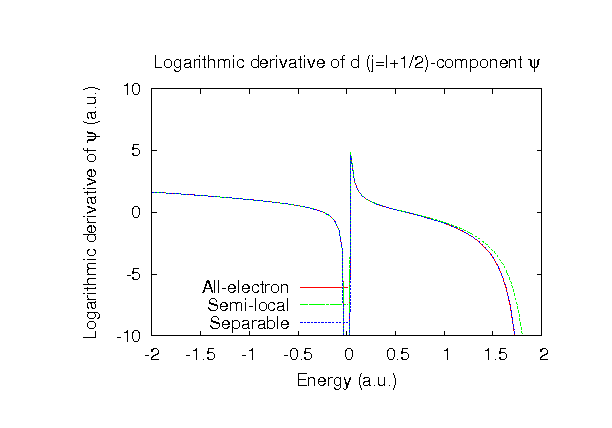

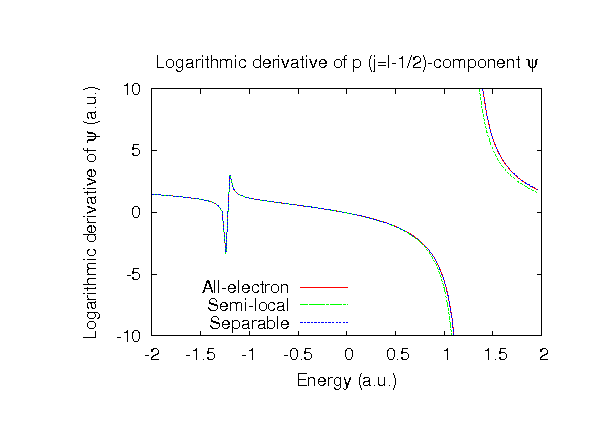

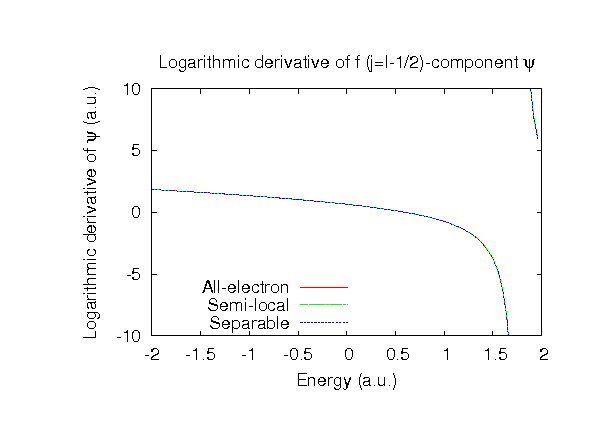

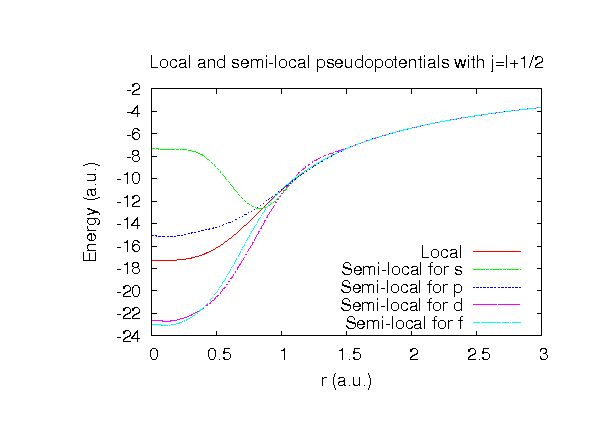

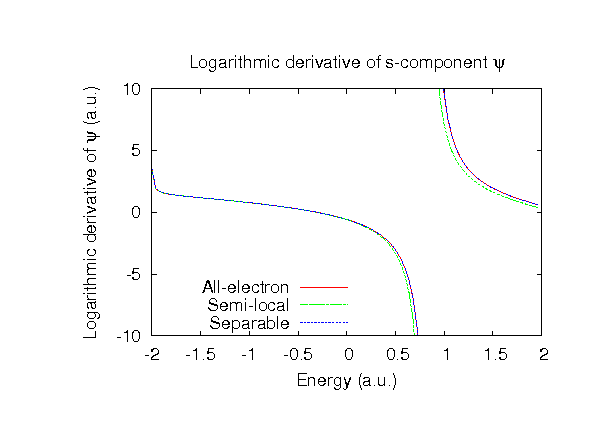

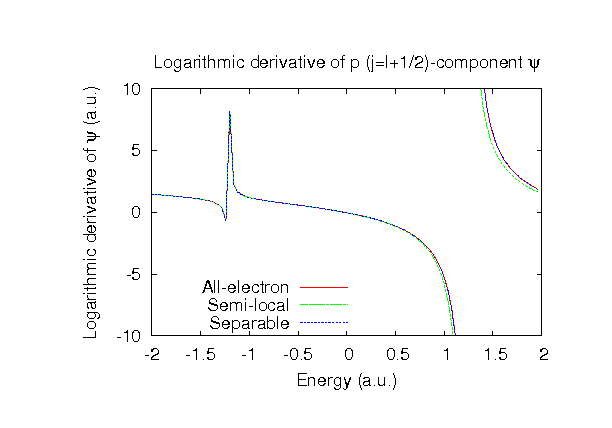

Supplementary information for the GGA (PBE13) pseudopotential
