CAD/CAM
Introduction
The aim of this paper is to propose a framework for supporting design and
manufacturing process and to verify it by the application to NC (Numerical Contr
ol) machining.
The main purpose of the framework is to provide a user with ``the
meaning of a product,'' which may be interpreted as looking for a
relationship between design informations at each phase, through a
manipulation of design information stored at a database.
The recognition of the relationship is necessary for reflecting
design changes in an arbitrary phase to design informations of other phases
appropriately.
The reflection work is defined in this paper as supporting design and
manufacturing process.
In this framework, design information at the design and manufacturing
process is modeled by several description-level component sets.
Each set consists of several component sets for the level of
specification, function, structure, entity, and production. These are
stored in an integrated database.
In the database, the components are linked to each other in each set,
and then are linked between different sets. The framework provides two
ways of operation on these components.
One operation is to construct each description-level model using the
corresponding level parts. The other one is to translate from
one model to another model, and propagate the modifications of models
using the link information.
This research will show that ``the meaning of a product'' could be
handled in a prototype system of the above framework.
Project

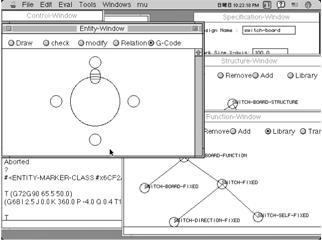

An Integrated Supporting System including the Upper process for Mechanical Desig
n and Manufacturing Process
Recently, many design-supporting systems have been used in the area of NC machi
ne production. However, designers have been using those systems as only a "drawi
ng tool" because most of them can support only a special design framework of a p
articular phase, for instance proofreading a design and generating NC code, in
the overall design process. Their frameworks are useful for the lower process. T
he current systems have not treated a support for the upper process. Then design
ers must take two styles of design framework: a framework which designers have t
o deal with and a computer-aided-framework, together at the same time.
In our research, our conception of design is transformation from a function spa
ce to a structure space. Our system describes function features, structural fea
tures and entity feature of designed objects. We propose a flexible supporting
system for design frameworks at all phases of the design process.
In this paper, we propose a new design supporting system for NC machine producti
on including a support for the upper process. We explain this system's concept a
nd the method that we used for implementing of the system.
Research Papers:
- Hideaki KANAI: A Study on a Framework for Supporting Design and
Manufacturing Process and its Application to NC Machining, Ph.D. Thesis,
University of Electro-Communications, Tokyo JAPAN(1998-3) (in Japanese)
- Hideaki KANAI, Nobukazu WAKABAYASHI and Hakaji HONDA:
An Integrated Supporting System Including the Upper Process for
Mechanical Design and Manufacturing Process,
Journal of IPSJ, Vol.36ˇ¤No.8ˇ¤pp.1926-1937 (1995-8)(in Japanese)
- Hideaki KANAI, Nobukazu WAKABAYASHI and Hakaji HONDA:
An Integrated System for Mechanical Design and Manufacturing Process of NC Machi
ning using Object Oriented Methodology, 27th International Symposium on Automoti
ve Technology and Automation (ISATA), Proceedings for Dedicated Conference on Me
chatronics, pp.335-342 (Nov. 1994)

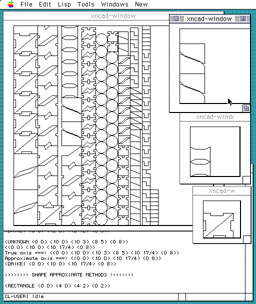

A Nesting System for NC Machining Using Structural Features of Parts
The layout problem has been examined in many
different fields such as VLSI, plant and windows of GUI layout
design. However, it is known to be NP-complete and therefore it is not
possible to provide exact solutions.
This research addresses a packing problem of NC (Numerical Control)
machining called the nesting problem. The problem is to allocate as
many parts as possible in a certain area. The solution is essential to
increase NC machining productivity.
There are many applications to propose techniques to the solution and
they have contributed to the improvement of productivity. However, they
tend to concentrate on the problem of packing rectangular shapes, have
to treat a new part as its maximum rectangular area, and can not use the
past nesting results easily.
In this paper, we propose a solution based on structural features of
parts, and show the effectiveness using a nesting system based on our
methodology.
In our system, we adopt CBR (Case Based Reasoning) including mechanism
of approximating structure of parts to recognize their structure. The
recognized parts are classified into five types of shape by the structure
features, and then for parts of each type, the local positions are
decided. Finally, the parts are placed globally on an area.
Research Papers:
- Hideaki KANAI, Nobukazu WAKABAYASHI and Hakaji HONDA:
An Integrated Supporting System Including the Upper Process for
Mechanical Design and Manufacturing Process,
Journal of IPSJ, Vol.36ˇ¤No.8ˇ¤pp.1926-1937 (1995-8)(in Japanese)
